EARLY POWER SEMICONDUCTOR HISTORY AT GE

An Interview with F.W. “Bill” Gutzwiller

 The Early History of the Silicon Controlled Rectifier













Go To Gutzwiller Oral History, Page 9

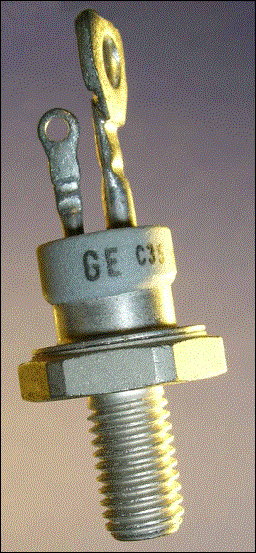

The first SCRs used the case style shown to the right, which has been standardized as a TO-48 case style.  The original prototypes used by Bill Gutzwiller for his pioneering applications development used this case style and were labeled as type ZJ-39A.  The “ZJ” numbering format was used by GE to identify prototype devices.  Production units were available in 1959, in a variety of case styles, performance characteristics and model numbers.  The photo above is from the SCR text [10] co-authored by Bill and illustrates the broad range of SCRs available in the early 1960s.  The original ZJ-39A was commercialized as the C-35, a sample of which is shown to the right. (This device is approx 1.5” from the top of the large solder lug to the bottom of the mounting bolt).
